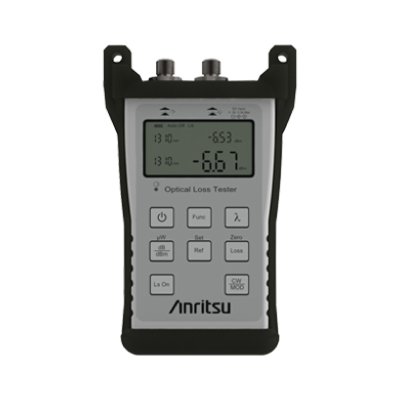

Anritsu CMA5 - Optical Loss Test Set
Anritsu Optical Loss Test Set
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
Test and Measurement
,
Optical Measuring Instruments
,
Optical Loss Test Set/Light Source/Optical Power Meter
āđāļāļĢāļāļāđ :Anritsu
Description
Features
Anritsu CMA5 : Optical Loss Test Set
Light Source Port:
| Model | 5LT35 | 5LT35C | 5LT83 |
| Supported Optical Fiber | 10 Ξm/125 Ξm SM fiber, PC-polished | 10 Ξm/125 Ξm SM fiber, PC-polished | 62.5 Ξm/125 Ξm MM fiber, PC-polished |
| Emitter type | LD | LD | LD |
| Wavelength | 1310/1550 nm Âą20 nm | 1310/1550 nm Âą20 nm | 850 nm/1300 nm Âą20 nm |
| Output power | -7 dBm (SM fiber) | -7 dBm (SM fiber) | -7 dBm (MM fiber) |
| Spectrum width | <5 nm | <5 nm | <5 nm |
Optical Power Meter Port:
| Model | 5LT35 | 5LT35C | 5LT83 |
| Fiber Type | SM (10 Ξm/125 Ξm)/MM (50 Ξm/125 Ξm, 62.5 Ξm/125 Ξm) | ||
| Detector Type | InGaAs | ||
| Calibrated Wavelength | 850, 1300, 1310, 1490, 1550, 1625 nm | ||
| Measurement Range | -60 to +5 dBm -50 to +10 dBm (850 nm) | -40 to +23 dBm | -60 to +5 dBm -50 to +10 dBm (850 nm) |
