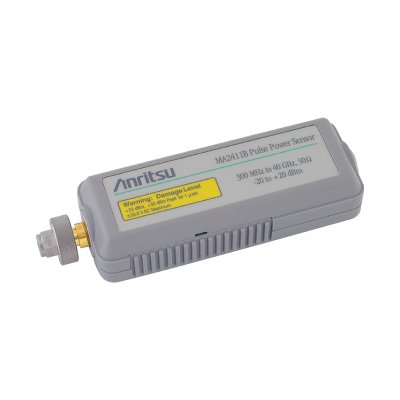

Anritsu MA2411B
Anritsu Pulse Sensor
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
Test and Measurement
,
RF Microwave Measuring Instruments
,
Power Sensors
āđāļāļĢāļāļāđ :Anritsu
Description
Features
Anritsu MA2411B : Pulse Sensor
The Anritsu MA2411B pulse power sensors are designed for use with the ML2480 and ML2490 series power meters. These sensors are used for pulse profiling and provide peak, crest factor, average power, rise time, fall time, maximum power, minimum power and statistical data of wideband signals.
SPECIFICATIONS
Pulse Sensor | |
| Model | MA2411B |
| Frequency Range | 300 MHz - 40 GHz |
| Dynamic Range (dBm) | -20 to +20 dBm |
| SWR | <1.15; 0.3-2.5 GHz <1.35; 2.5-26 GHz <1.50; 26-40 GHz |
| Rise Time *1 (ns) | <8 |
| Sensor Linearity | <4.5% 0.3 to 18 GHz <7% 18 to 40 GHz |
| RF Connector *2 | K(m) |
*1. 10 dBm, room temperature, ML249x Power Meter
*2. Each MA24XX Series sensor incorporates precision RF Connectors with hexagon coupling nut for attachment by industry standard torque wrench.
