Microwave CW USB Power Sensor

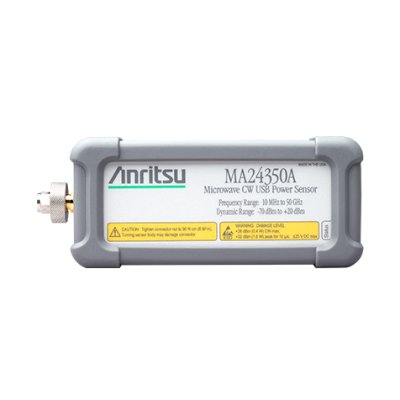

MA24350A : Microwave CW USB Power Sensor

View more

The MA24350A power sensor is designed to provide fast, accurate average power measurements from 10 MHz to 50 GHz over 90 dB of dynamic range. The sensor employs high-performance digital processing that enables measurements speeds of >2,100 continuous power readings/s and >5,600 buffered readings/s.

A unique, low noise design eliminates the need to zero the sensor before taking measurements for most applications.

The sensors have internal and external triggering capability that facilitates time-based measurements and the use of list mode to speed up automated processes.

The sensor can be controlled with a PC via remote programming commands or with PowerXpert, a free of charge software application. These sensors are also compatible with most Anritsu RF and microwave handheld instruments. The high accuracy power meter software option (e.g., Option 19) may be required.

The excellent damage protection combined with the silicone protective covering give the sensor increased ruggedness and enable users to protect their investment.


  Model  MA24350A
  Frequency Range  10 MHz to 50 GHz, V(m) Connector
  Dynamic Rang  -70 dBm to +20 dBm
  <1.90, < 50 MHz
  <1.17, 50 MHz to 150 MHz
  <1.08, 150 MHz to 2 GHz
  <1.16, 2 GHz to 6 GHz
  <1.21, 6 GHz to 18 GHz
  <1.29, 18 GHz to 33 GHz
  <1.44, 33 GHz to 40 GHz
  Measurement Uncertainty *1

  +20 dBm to +15 dBm      +15 dBm to -70 dBm
           0.18                                     0.15                       10 MHz to 18 GHz
           0.21                                     0.17                       18 GHz to 50 GHz

  RF Connector  V(m) Connector


*1 Expanded uncertainty with K=2 for CW measurements after zero operation. Includes linearity over temperature uncertainties, but not the effects of mismatch, zero set and drift, or noise. Specifications apply over a temperature range of 0 °C 50 °C and a 60 minute warm up period.
